Australia Steel Warehouse Project (24m × 36m × 5.97m)

Year: 2025
Location: Australia
Building Type: Prefabricated Steel Warehouse / Storage Building
Size: 24m × 36m × 5.97m
Floor Area: 864 m²
Structural System: Portal-frame steel structure
What Vizsteel Delivered: Shop drawings & detailing / Factory fabrication / Quality inspection / Packing & delivery

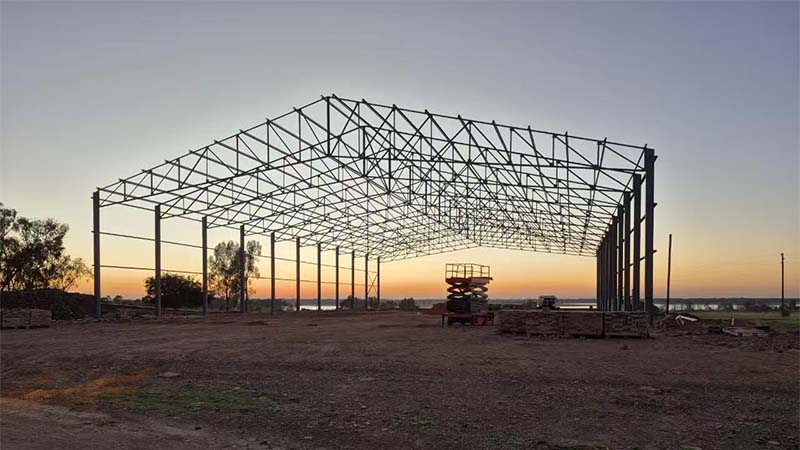

On-site Erection: Completed by the client’s local construction team

Project Introduction

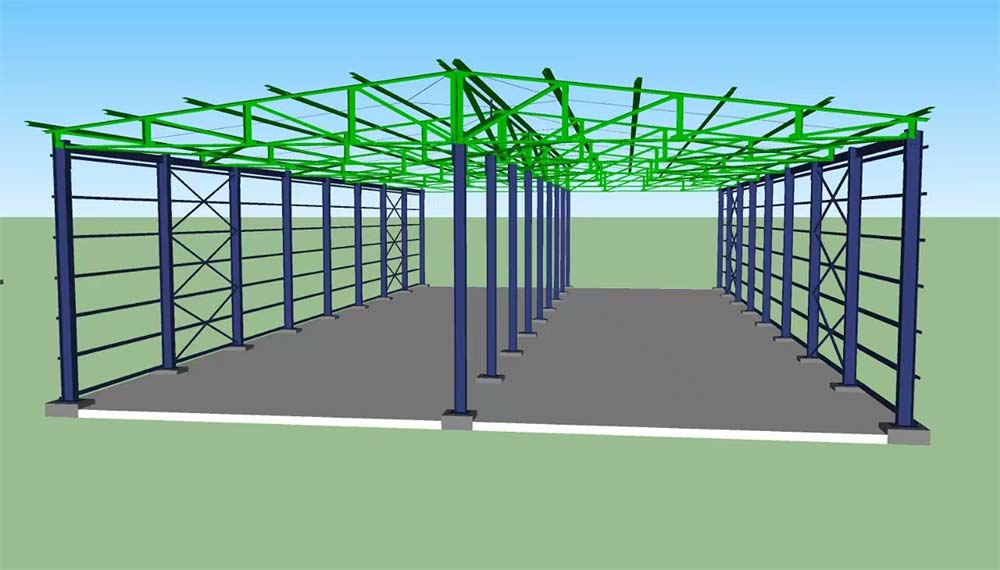

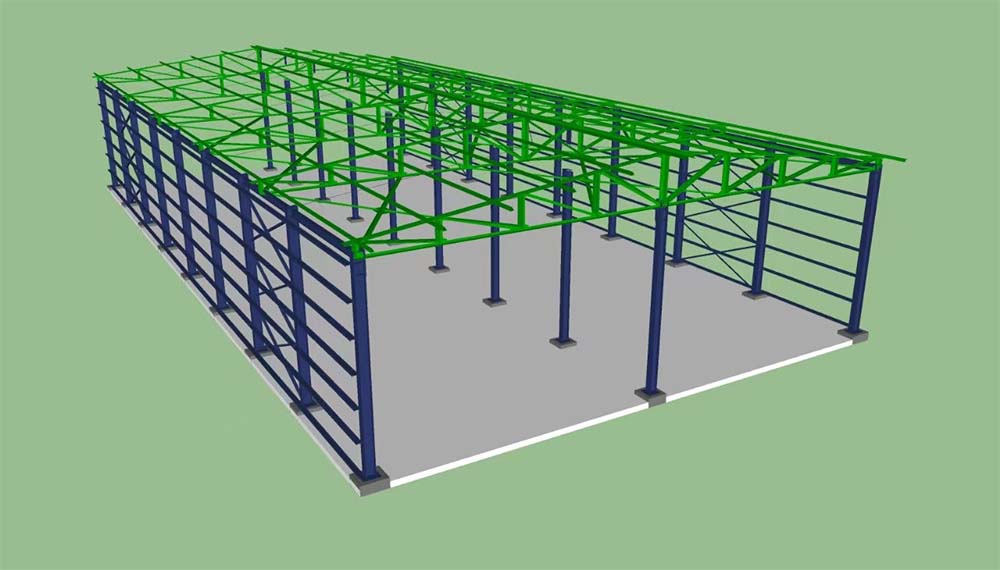

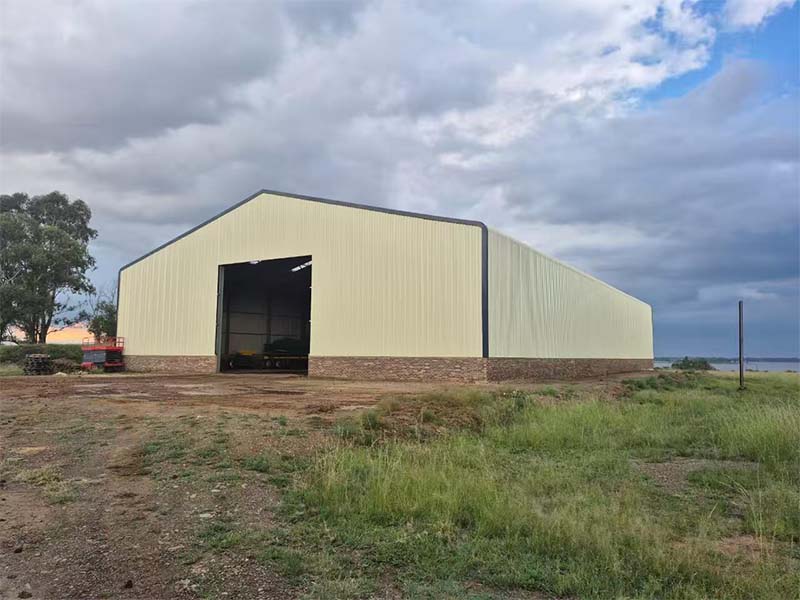

A prefabricated steel warehouse project delivered for an Australian site. This case showcases the overall building layout, framing visuals, on-site erection progress, and the finished exterior—useful as a reference for buyers planning similar clear-span warehouse buildings.

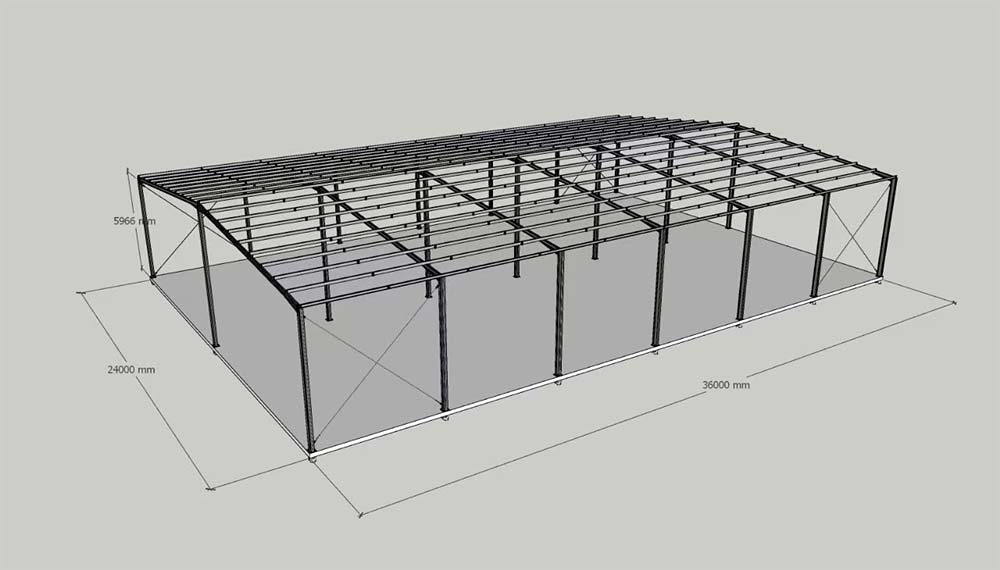

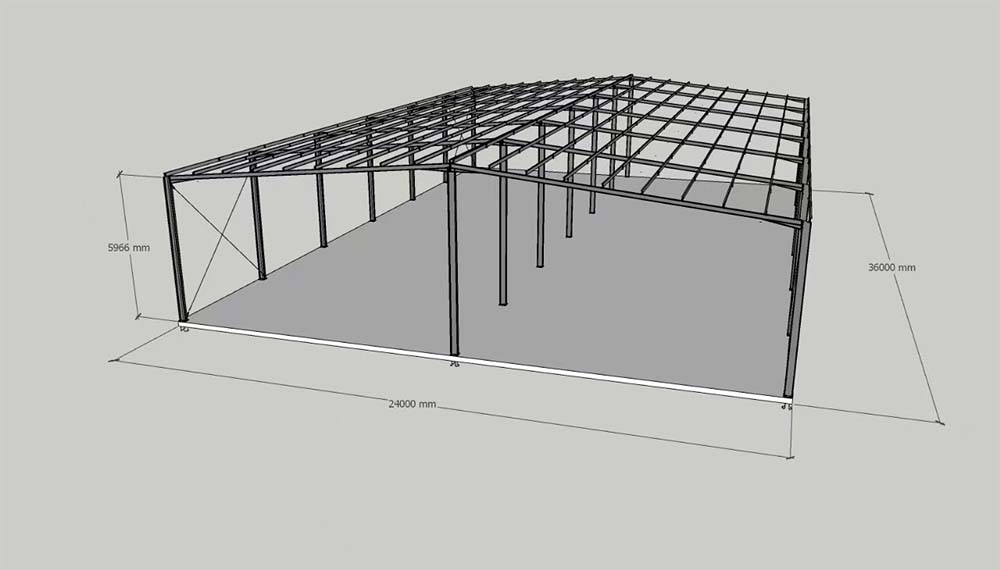

Drawing Design

Drawings shown are for reference only. Final engineering should be confirmed by a licensed local engineer based on site conditions and local codes.
Want a similar layout? Send your location + building size + intended use for a fast quotation.

Get a preliminary quote in 24 hours (with layout recommendations).

Why Vizsteel / What We Delivered

From drawings to delivery, we help clients source reliable prefabricated steel structures with clear documentation, controlled fabrication, and export-ready packing.

Drawings & Detailing

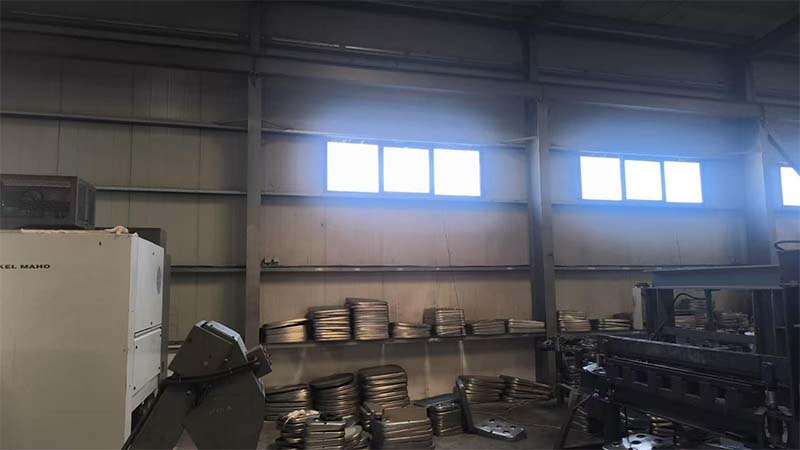

Factory Fabrication

Quality Control

Packing & Delivery

If you’d like to understand our fabrication capacity and quality inspection process, you can review our manufacturing & QC capabilities on the About page.
