Custom Prefabricated Steel Warehouse Buildings

Name: Custom Prefabricated Steel Warehouse Buildings
Brand: Vizsteel
SKU: VIZ-WH-CUSTOM
Availability: InStock

We design and supply prefabricated (prefab) steel warehouse buildings tailored to your span, eave height, and local wind/snow loads.

Finished Metal Warehouse Roof and Side Panels with Insulation

Why Choose a Vizsteel Prefab Metal Warehouse

Quick Specs:

Span: up to 36 m (custom)

Eave height: custom (to project requirement)

Frame spacing (bay): custom (typical 6–9 m)

Cladding: single sheet or insulated sandwich panels

Steel options: common Q235/Q355 (or equivalent), others on request

Reference price: USD 30–60/m²

Send these for an accurate quote:

Building size (L×W×H), location, wind/snow requirement
Door sizes, loading docks, crane/mezzanine needs
Insulation preference (roof/wall)

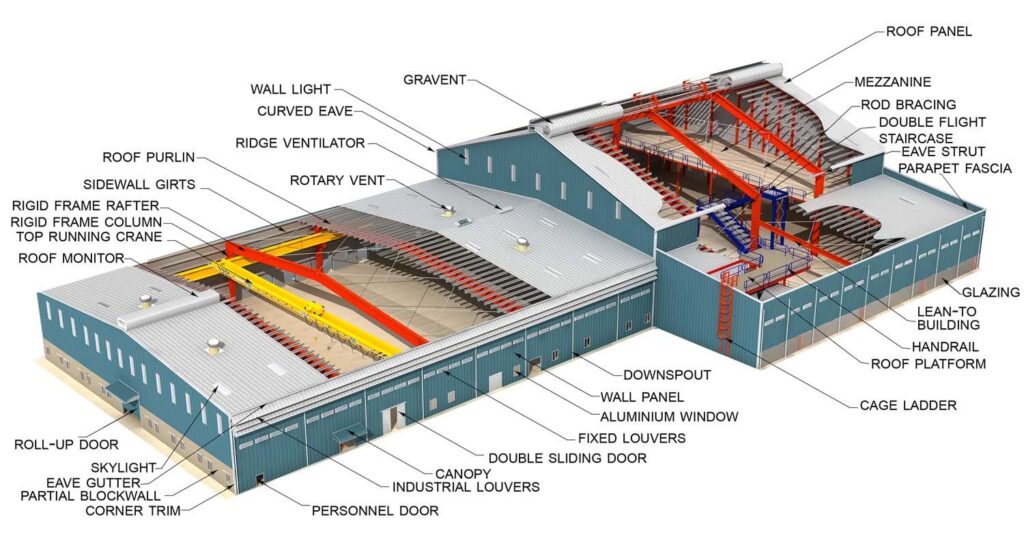

What’s Included

What’s Included in Your Steel Structure Warehouse Package

Each warehouse project can be supplied with a customized package based on your building size, use case, local loads, and insulation requirements.

Depending on your project scope, the package may include the main steel frame, secondary framing, wall and roof panels, doors, trims, and related accessories.

Send us your building size and project location to receive a tailored quotation and recommended building configuration.

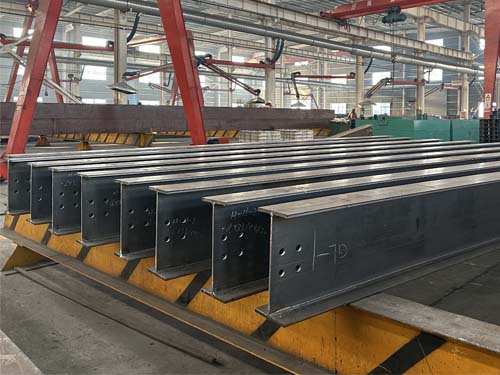

H Beam

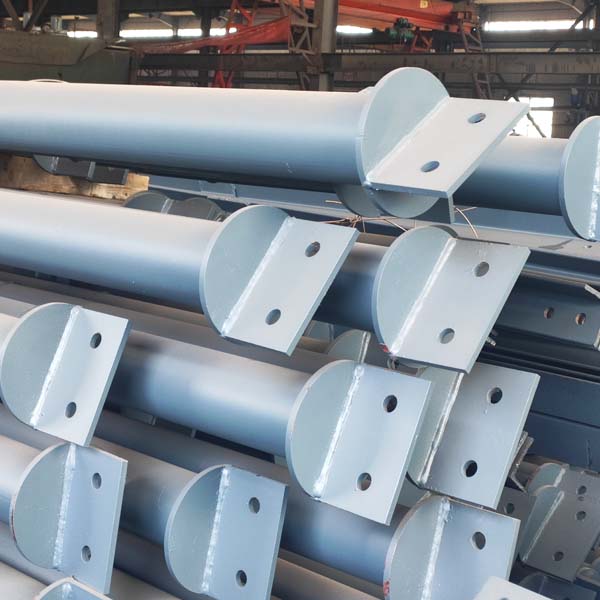

Tie Rod

Angle Iron

C Purlin

Z Purlin

PU/PIR Sandwich Panel

EPS Sandwich Panel

Stacked glasswool sandwich panels with metal facing for steel warehouse and workshop roof and wall cladding systems

Glasswool Panel

Close-up of rock wool sandwich panels with metal facing and interlocking edge for steel warehouse and workshop buildings

Rockwool Panel

Stacked single-skin corrugated galvanized steel sheets for steel building wall and roof cladding

Single-Skin Metal Sheet

Ventilation

Downpipe

High Strength Bolt

Batter Brace

Metal cover trim component used for edge finishing and sealing in steel warehouse and workshop roof and wall cladding systems

Wrap the edge

Industrial Lifting Door

Rolling Shutter Door

Shown items are for reference only. The final package scope can be adjusted to your project requirements.

Our Streamlined Process | From Vision to Reality

Embarking on a construction project can seem daunting, but with our dedicated team by your side, it’s a breeze.

If you’re comparing layouts and structural options, our PEB warehouse guide covers common frame types, components, and a quote checklist.

From the moment you envision your steel building to the final walk-through, our committed sales representatives are here to guide, support, and ensure a seamless experience from start to finish.

Reach out today to get a free quote!

1.Request Quote

You send us your building requirements including dimensions (length, width, height), use and any special needs.

2. Send Quote

Our engineers will review the details and provide you with a tailored price estimate. (24-72 hours)

3.Signing and Deposit

Get ready to close! Once you've confirmed your purchase, we'll immediately email you the contract for the steel structure building. Simply sign the documents and pay the deposit. Once that's done, we'll begin developing the plan.

4.Plan Review and Approval *

Once the drawings are finalized (1-2 weeks), we will send them to you and once you approve them, we will start material production.

5.Order & Production**

The production will take about 1-8 weeks depending on the scale of the project. We will notify you when the production is completed. After inspection, you need to pay the balance and we will arrange shipment.

6.Packaging & transportation***

We use bottom pallet to put the goods in container,We will ship to your destination by sea, shipping time which takes about 2-8 weeks depending on the country. After receiving the goods, we will guide you to install them.

Here are answers to common questions about quotation, package scope, drawings, installation, and future expansion for steel warehouse projects.

1. What information do I need to get a warehouse quotation?

To prepare a more accurate quotation, we usually need your project location, building size (length × width × eave height), intended use, door requirements, roof and wall preference, and whether insulation is needed. If you already know local wind or snow loads, that will also help us recommend a more suitable building solution.

2. Can you customize the warehouse size and layout?

Yes. Our steel warehouse buildings are customized according to your required dimensions, layout needs, and project use rather than using one fixed standard design. We can adjust the span, length, height, door positions, and other key details based on your project requirements.

3. Can the building be designed for local wind and snow loads?

Yes. The warehouse structure can be designed according to the local wind load, snow load, and other relevant project conditions you provide. Sharing the project location or design criteria at the inquiry stage helps us recommend a more suitable structural configuration.

4. What is included in a typical steel warehouse package?

A typical warehouse package may include the primary steel frame, secondary framing, roof and wall cladding, fasteners, trims, flashing, gutters, downpipes, and other related accessories. Doors, windows, skylight panels, ventilation options, and insulation materials can also be included depending on the confirmed project scope.

5. Can I choose insulated roof and wall panels?

Yes. We can offer different roof and wall cladding options, including insulated sandwich panels, based on your project use, local climate, and thermal performance requirements. The final panel type and thickness can be selected according to your budget and building needs.

6. Do you provide drawings for fabrication and installation?

Yes. Depending on the project scope, we can provide general arrangement drawings, erection drawings, and member details to support fabrication confirmation and installation coordination. These documents help your team better understand the building layout and assembly requirements before shipment and erection.

7. Do you provide foundation drawings?

We can coordinate foundation-related information according to the project, but the final foundation design should be checked against local soil conditions, site requirements, and local engineering standards. In most cases, the local foundation work is handled by the client’s local engineer or contractor.

8. Do you provide installation service?

Most customers arrange installation with their local contractor or construction team. Our main scope usually focuses on drawings, steel fabrication, export packing, and remote technical support to help coordinate the installation process more smoothly.

9. How long does production usually take?

Production time depends on the building size, technical complexity, order details, and factory schedule. After the project scope and drawings are confirmed, we can provide a more specific production timeline based on your actual requirements.

10. Can the warehouse be expanded in the future?

In many cases, yes. If future expansion is part of your plan, it is best to mention it at the beginning of the project so the initial layout and structural design can take that possibility into account.

How Much Does It Cost to Build a Warehouse?

Why Understanding Cost Matters

Before starting a steel structure warehouse project, securing suitable land and confirming site conditions come first. Once the site is ready, building cost becomes the next key question for investors and project owners. A clear cost framework supports budgeting, ROI planning, and accurate procurement decisions,while reducing the risk of scope changes later.

What’s Included in Our Package

At Vizsteel, we offer a full-package prefabricated steel warehouse solution. Our standard scope includes:

Main & Secondary Steel Structure
Primary frames, bracing, purlins, and girts engineered to your layout and local loads.
Roof & Wall Panel Systems
Durable cladding options, including insulated panels when thermal performance is required.
Doors, Windows & Accessories
Roll-up doors, personnel doors, ventilation parts, trims, and connection hardware as specified.
Drawings for Installation
Building drawings and erection drawings to support accurate on-site assembly.

Partial supply is available (steel structure only, panels only, or customized scope).

Factory production costs Estimate: $30–$60/m² (Approximate)

As a general reference, the factory package (EXW, steel structure + cladding + accessories) cost for a standard steel warehouse may fall in the range of $30–$60/m² (reference only). This estimate typically covers the prefabricated building package from our factory and does not include foundations, local installation labor, permits/approvals, taxes, or inland delivery to the jobsite.

🔸 Wind load, snow load, seismic requirements, etc.
🔸 Building span, height, and number of floors
🔸 Special functions like cranes or fire-resistant materials
🔸 Steel material price fluctuations

Logistics Costs: From Factory to Port and Beyond

Our factory is located in Shandong, China, with shipments made from either Qingdao Port or Tianjin Port. Standard offers are made FOB (Free On Board)、CIF (Cost, Insurance, and Freight), but we also support:DDP may be available for select destinations depending on local clearance requirements and shipping feasibility.

Sea freight rates vary significantly depending on the destination port and shipping season. For accurate delivery quotes, please provide your destination port when inquiring.

As a rough guide, estimated 40ft container sea freight costs from China (Qingdao or Tianjin Port) are:

🔸 Southeast Asia: $800 – $1,800

🔸 Europe: $2,000 – $4,000

🔸 South America: $2,300 – $4,000

🔸 Africa: $2,000 – $3,500

🔸 Oceania (e.g., Australia, New Zealand): $2,000 – $3,000.

For reference, one recent 2,000 m² warehouse project equipped with insulation panels required around 10×40ft containers. However, container quantity can vary depending on your final material scope (steel structure only vs. full enclosure), panel type, accessories, and packing plan. The final number is confirmed based on the BOM and loading arrangement.

Local Construction Costs: On-site Labor Considerations

Most of our customers choose to hire a local construction team for installation, so you need to inquire about the installation price of local workers. To support them, we provide the following services:

Complete installation drawings

Remote video guidance by our engineers

On-site guidance can be arranged (additional cost, subject to travel feasibility).
Most clients hire local installers, and we support them with drawings and remote technical guidance.

Get a Tailored Quote Fast

We encourage clients to send us your warehouse dimensions, drawings, or intended use. Our engineering team will prepare a tailored quotation with preliminary layout recommendations as soon as possible—most standard projects receive a response within 24 hours.

Want to see a real reference before you submit requirements? Browse our steel warehouse case studies for spans, layouts, and delivered scope.

Get Your Free prefabricated steel warehouse Building Quote Today!

From Drawings to Real Buildings

See how our shop drawings translate into finished steel buildings—engineered to match your span, eave height, and local wind/snow loads.

What You'll Get When You Request a Quote

Explore real-world applications of our steel buildings — tailored for industrial, commercial, and agricultural needs across various countries.

Included in Our Reply

A clear quotation scope (primary frame + cladding options + accessories as requested)
A quick parameter confirmation checklist (so nothing important is missed)
A recommended configuration for your use (openings, ventilation, daylighting, insulation level)
Packing list guidance and shipment notes (if delivery is required)

What to Prepare (takes 1 minute)

Project location (country/city)
Building size (L × W × eave height)
Use case (storage, logistics, workshop, etc.)
Roof/wall preference (sheet or sandwich panel)
Doors & openings (type + quantity + approximate sizes)

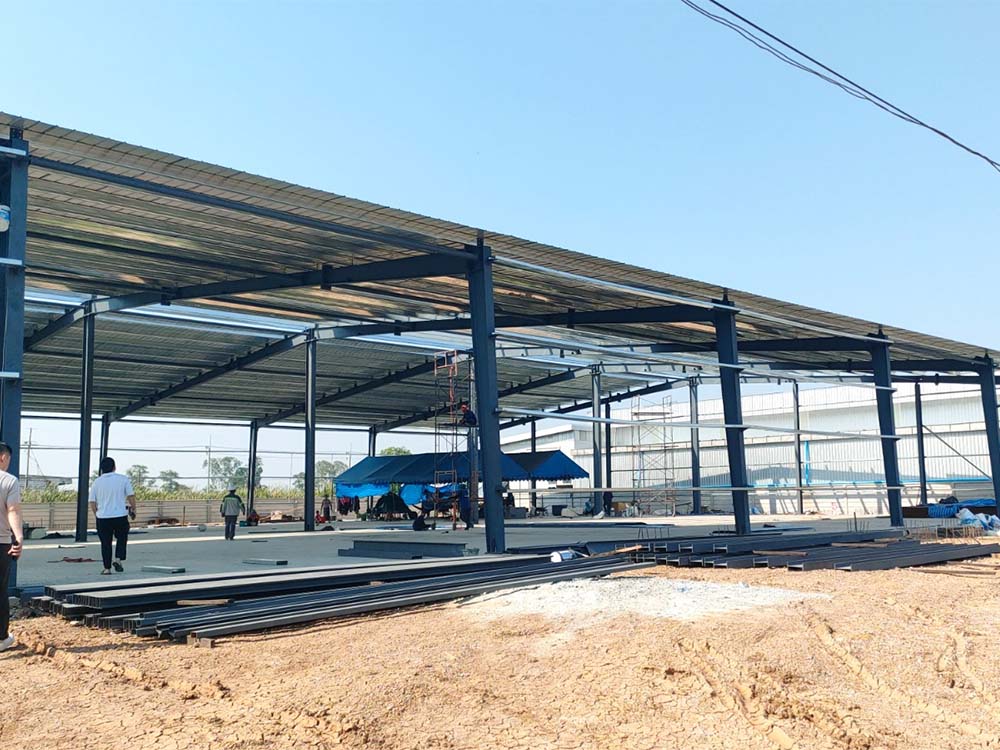

Proof from Recent Projects

Here are a few real project snapshots. Client details are hidden, but sizes and scopes are accurate.
