Prefabricated Steel Workshop Buildings Manufacturer
Built to your span, eave height, and local wind/snow loads—share your crane requirement (if any) for a fast quote.
Why Choose a Vizsteel factory building
Quick Specs:
Single-span width: up to 36 m (custom)
Eave height: custom (to project requirement)
Frame spacing (bay): custom (typical 6–9 m)
Overhead crane capacity: custom (to project requirement)
Cladding: single sheet or insulated sandwich panels
Steel options: common Q235/Q355 (or equivalent), others on request
Reference price: USD 30–65/m²
Send these for an accurate quote:
Building size (L×W×H), location, wind/snow requirement
Crane requirement (if any): capacity, lift height, duty class; door sizes
Insulation preference (roof/wall) and ventilation needs
100% Steel
Cost-effective price
Fast delivery
What’s Included
What You’ll Receive for Your Factory Building Project
You’ll get a clear quotation scope (main frame + cladding + accessories), a quick parameter checklist, and a recommended workshop configuration based on your workflow and local wind/snow loads. If an overhead crane is required, we’ll confirm crane capacity, runway beam option, and lifting height assumptions for engineering.
Contact us for a free quote and a preliminary layout within 24–48 hours after receiving your basic parameters.
H Beam

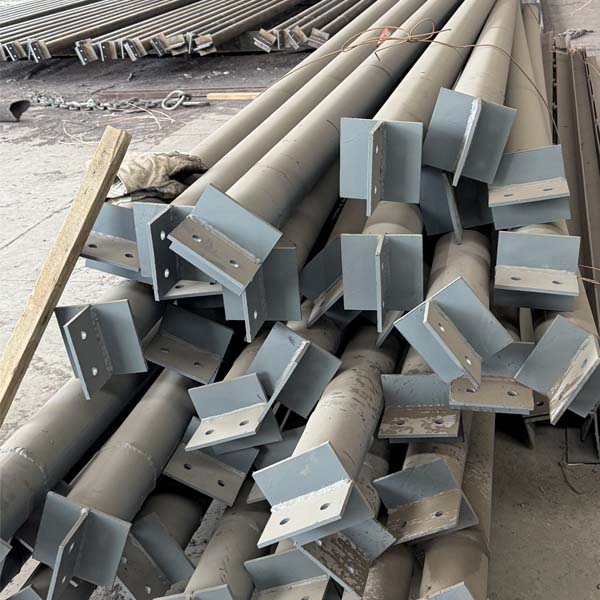

Tie Rod

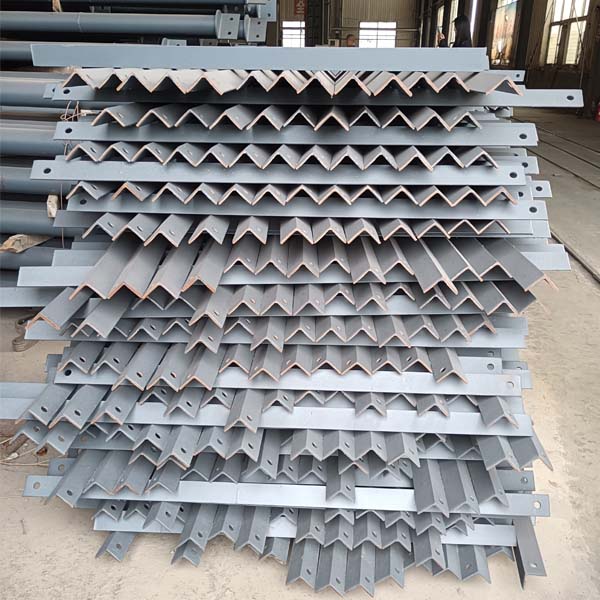

Angle Iron

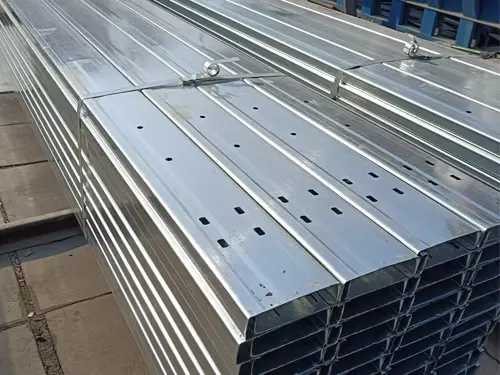

C Purlin

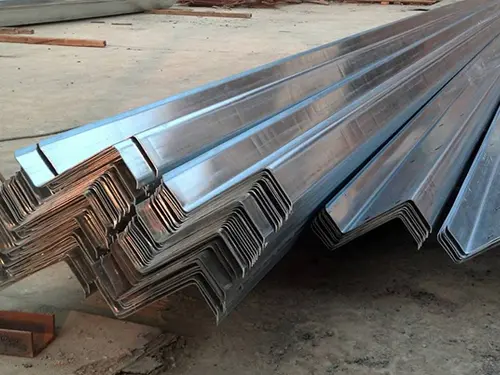

Z Purlin

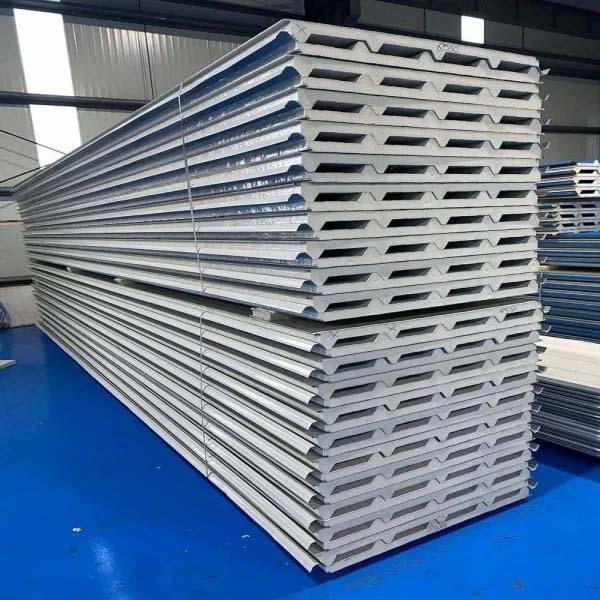

PU/PIR Sandwich Panel

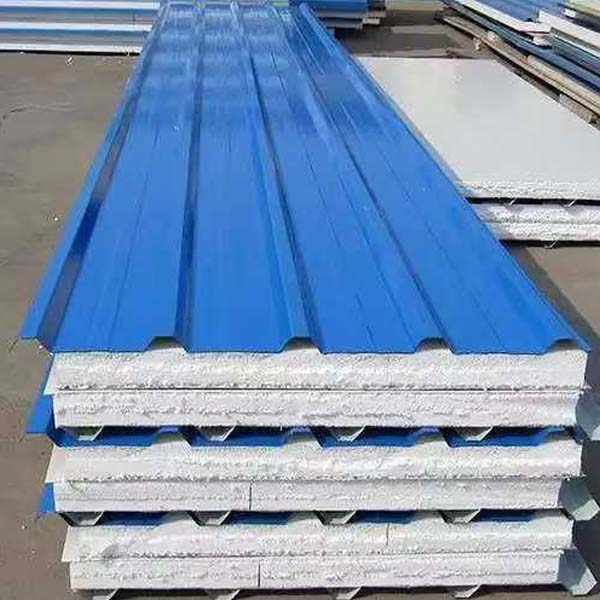

EPS Sandwich Panel

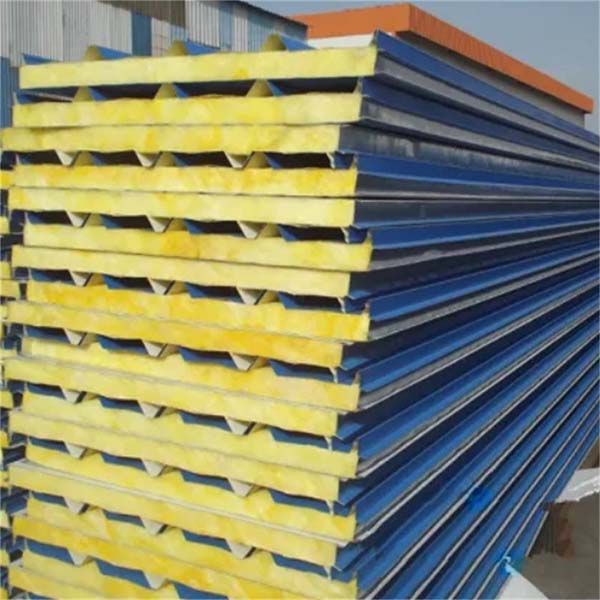

Glasswool Panel

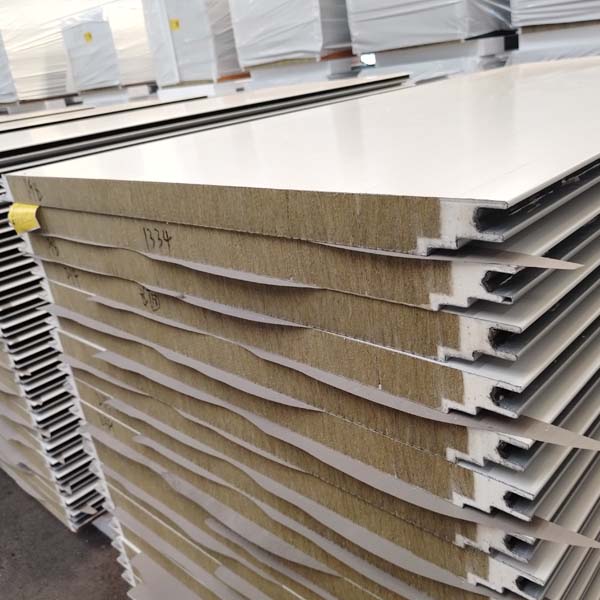

Rockwool Panel

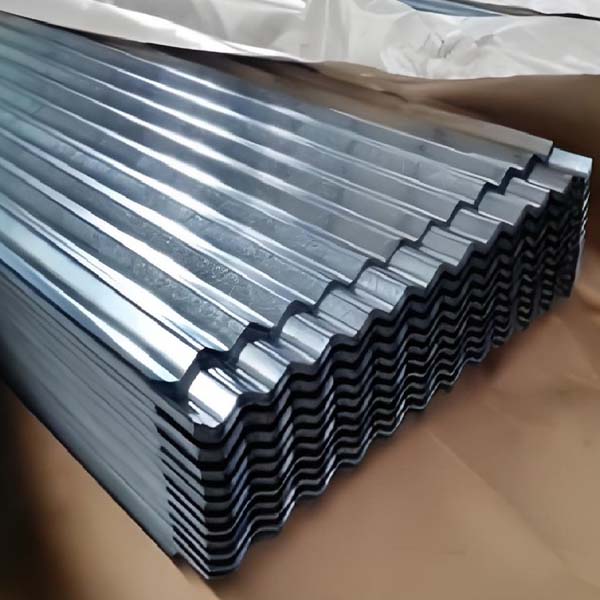

Single-Skin Metal Sheet

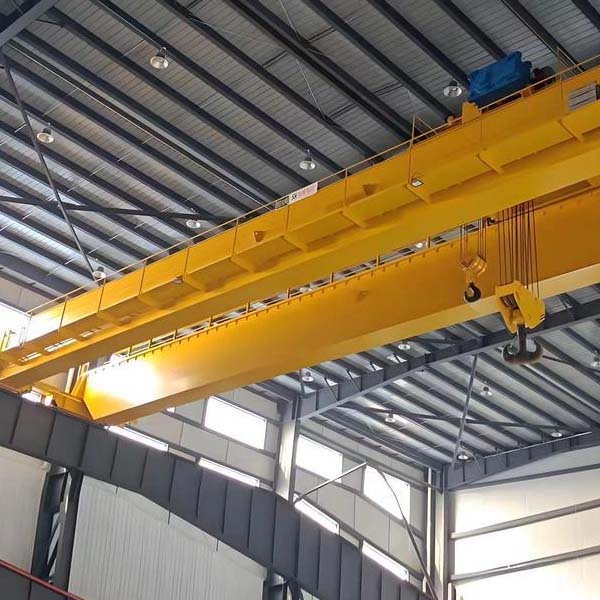

Overhead Crane

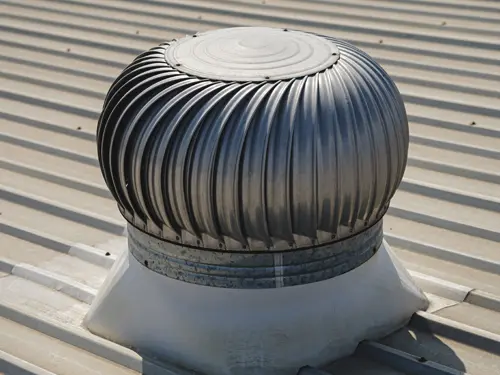

Ventilation
Downpipe

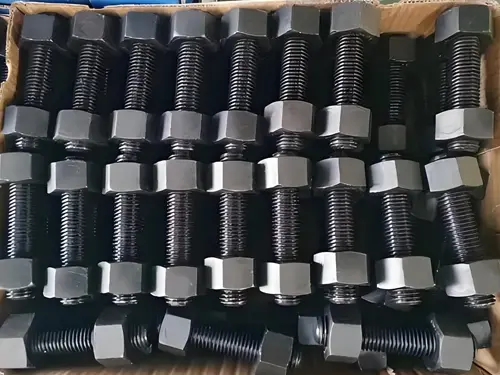

High Strength Bolt

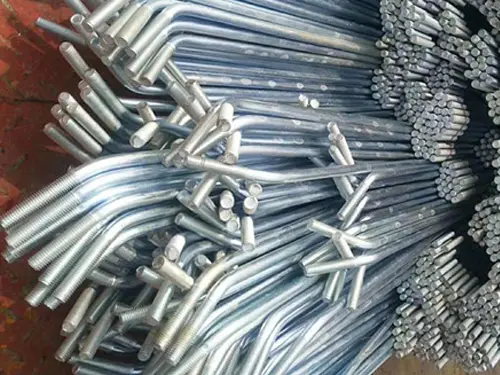

Batter Brace

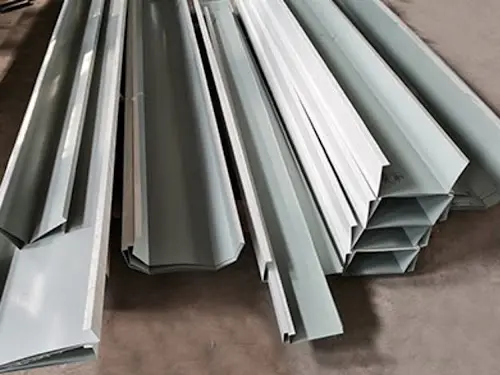

Wrap the edge

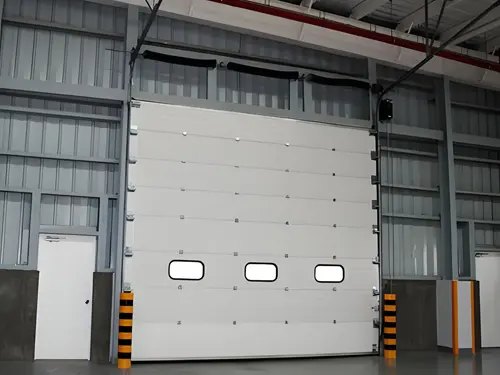

Industrial Lifting Door

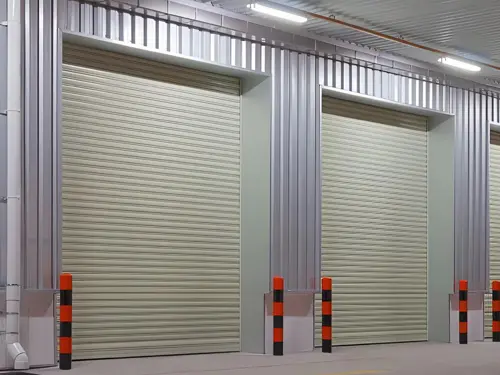

Rolling Shutter Door
Some accessories are shown, please contact us for more details
Our Streamlined Process | From Requirements to Workshop Delivery
Building a steel workshop is straightforward when key parameters are confirmed early—especially crane needs, workflow, and local loads. Our team supports you from layout planning to fabrication, packing, and shipping documentation.
Reach out today to get a free quote and preliminary layout.
Send your workshop basics: L × W × eave height, location, wind/snow loads, and use case.
Confirm crane capacity, lifting height, duty class, runway beam option, and your production workflow (equipment zones, door positions).
We provide a clear scope (main frame + cladding + accessories) and a budget quote with recommended configuration options.
Review the preliminary GA layout and key details (openings, ventilation/daylighting, insulation, crane bay arrangement). Approve for production.
After deposit, we finalize shop drawings, start fabrication, and perform QC checks before packing.

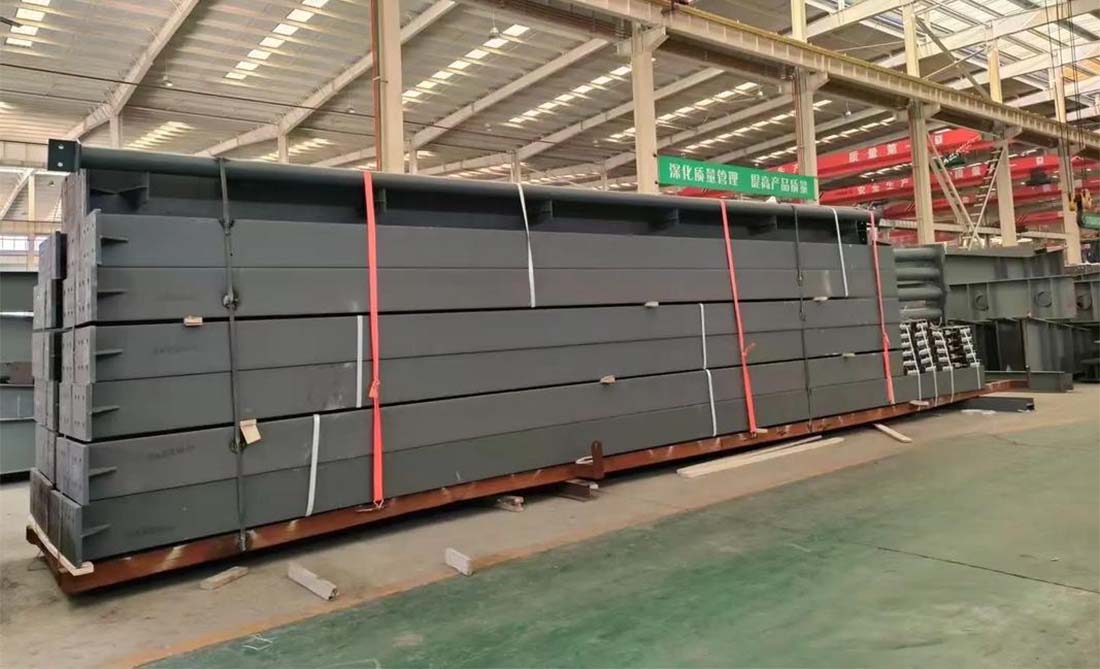

We provide packing lists, loading guidance, and export documents. Delivery can be arranged to your port/site as required.
Steel Workshop Buildings: Design, Options, and Cost Factors
1.What Is a Steel Workshop Building?
A steel factory building is a prefabricated structure made from high-strength steel components, designed to serve as a production space, maintenance facility, or storage area. These buildings are manufactured off-site and assembled on location, offering faster construction, higher durability, and better cost efficiency compared to traditional buildings.
2.Advantages of Steel Workshops
✅ Fast Construction: Delivered as pre-cut and pre-drilled kits, easy to assemble.
💸 Cost-Efficient: Lower material waste, less labor, shorter timelines.
🏗️ Durable & Strong: Excellent resistance to fire, wind, snow, and seismic loads.
🧱 Flexible Layouts: No internal columns needed; wide clear-span options (span depends on design loads and layout).
♻️ Eco-Friendly: Highly recyclable steel with low-maintenance finishes
3. Types of Steel Workshop Structures
Single-span Portal Frame
Multi-span / Multi-bay Frame
Crane-ready Steel Workshops (with gantry beam or e-crane rail)
Two-storey or Mezzanine-type Steel Workshops
These structures can be tailored for different usage—from fabrication plants and garages to warehousing and mixed-use industrial buildings.
4.Design Options & Customization
At Vizsteel, every steel workshop can be customized based on your project:
✅ Building dimensions: Length, width, height
✅ Roof type: Gable, single slope, flat
✅ Cladding: Sandwich panels, corrugated steel sheets
✅ Doors & windows: Rolling shutter, sliding, personnel doors
✅ Crane support: 5T–50T e-crane beams
✅ Skylights, ventilation fans, wall louver
We also offer custom color coatings, logo printing, and support OEM/ODM services.
5. Insulation, Roofing, and Wall Panels
Wall & Roof Panel Types:
Single-skin corrugated steel sheets
PU sandwich panels
Foam sandwich panels
Rock wool / Glass wool panels (for fire-resistance & insulation)
Roofing Options:
Standing seam roof (screwless, high-sealing)
Screw-down roof (cost-effective)
Skylight panel integration (natural lighting)
6.Steel Grades, Surface Finishing & Anti-Corrosion
Main Frame Steel: Q355B / Q235B / ASTM A36 / H-Beam or Box Columns
Secondary Steel: Galvanized C/Z purlins, angle steel bracing
Surface Finishing:
Hot-dip galvanized (HDG)
Powder coated
Alkyd painted (2-layer or 3-layer system)
Zinc-rich epoxy primer (for marine/coastal areas)
Optional Anti-corrosion Coating: Zinc-rich epoxy primer
7. Installation Timeline & Project Flow
| Phase | Typical Duration |
|---|---|
| Design & Engineering | 1–4 weeks |
| Production | 2–10 weeks |
| International Shipping | 2–10 weeks (by sea) |
| On-site Installation | 4–12 weeks |
Final schedule is confirmed after drawings and BOM are approved.
We provide detailed assembly manuals, engineer support (remote or on-site), and packaging for fast, smooth installation.
8. Typical factory price range
The total price depends on:
Building size and complexity
Steel grade and surface treatment
Insulation and cladding materials
Crane systems and accessories
Shipping location & volume
Typical factory price range:
$30–$40/m² for frame building
$40–$65/m² for insulated, crane-equipped workshops.
9. 📞 Get a Free Design & Quote
Ready to start your steel workshop project? Send us your dimensions, usage requirements, or rough layout, and our expert team will get back with:
✔️ Free 2D or 3D layout
✔️ Engineering advice
✔️ Competitive quote
✔️ Delivery timeline & support plan
Get Your Free Steel Building Quote Today!

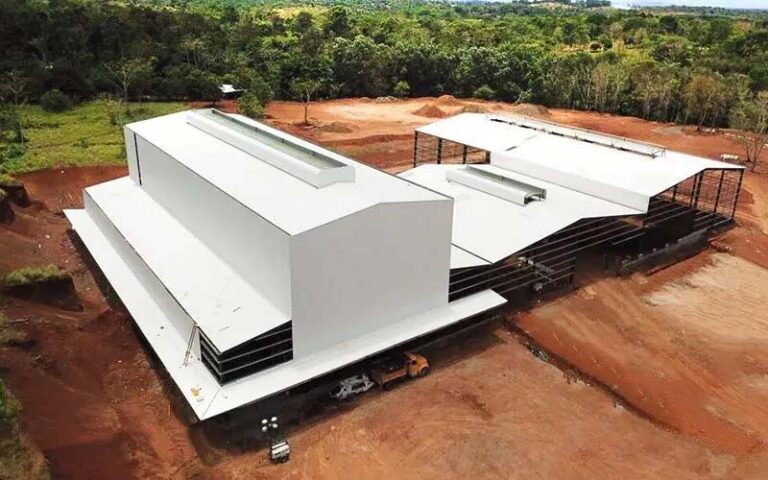

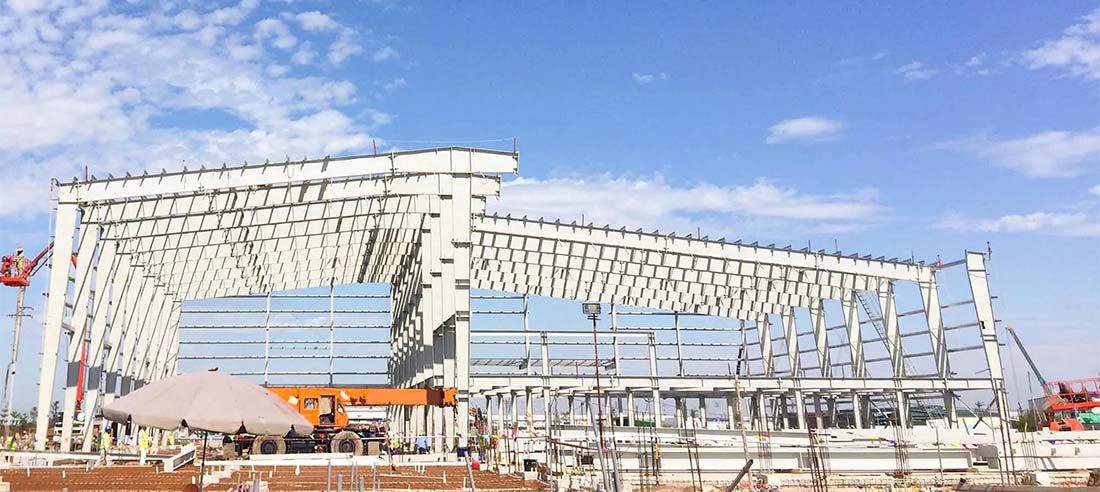

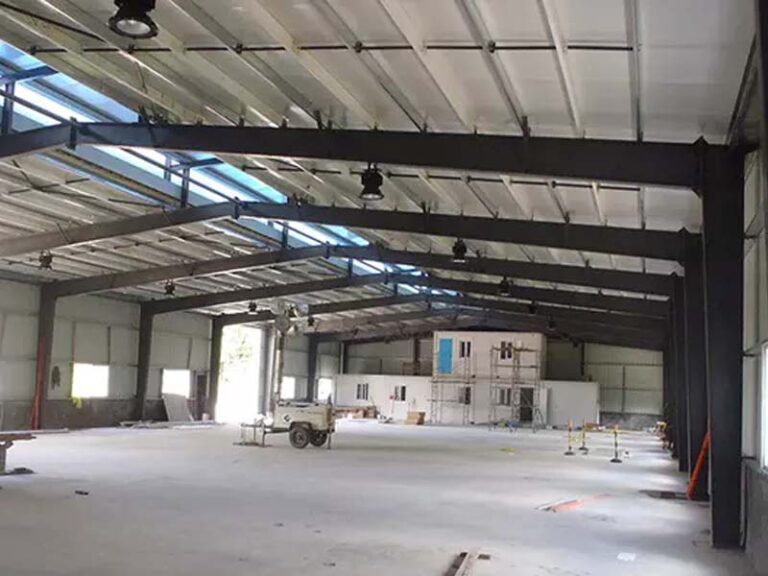

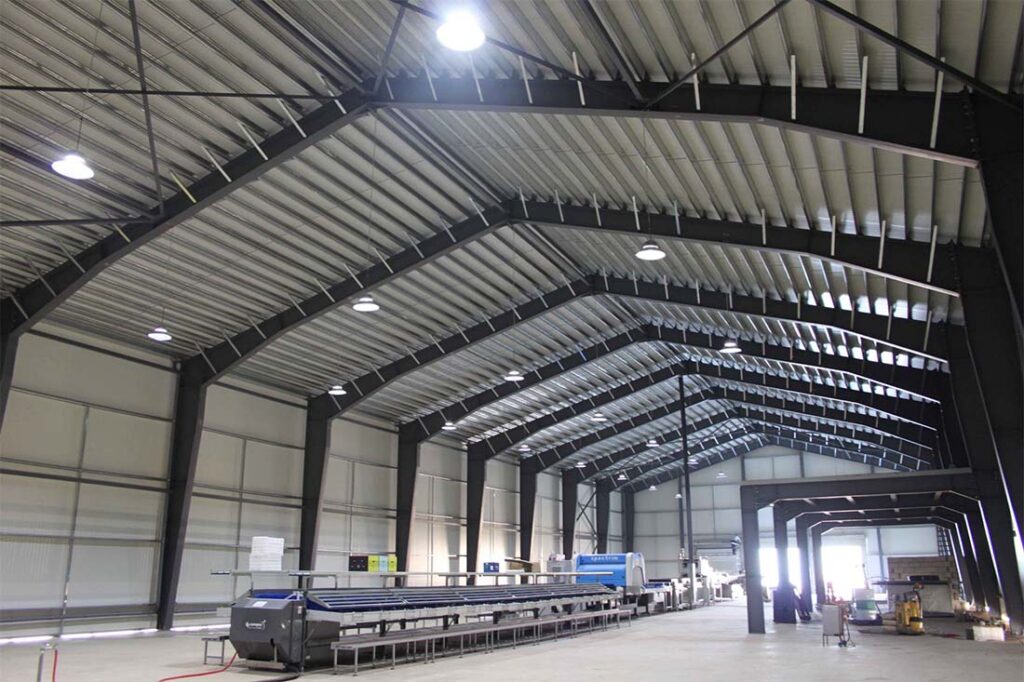

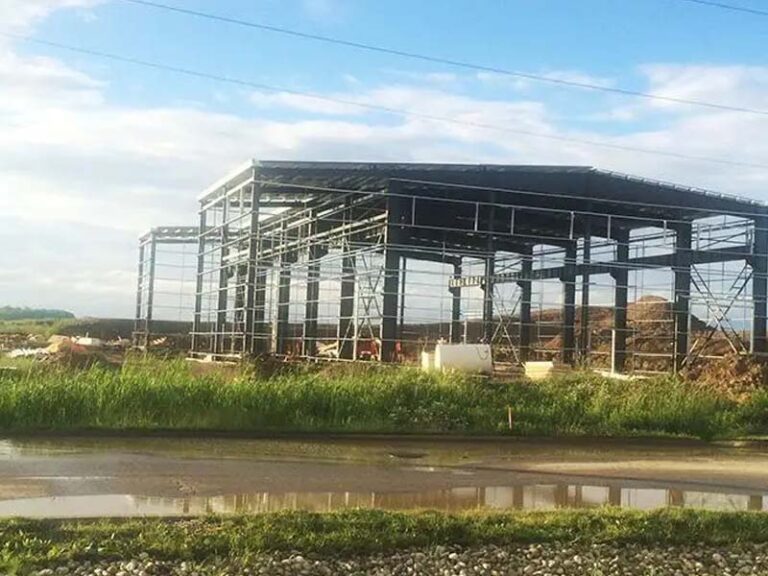

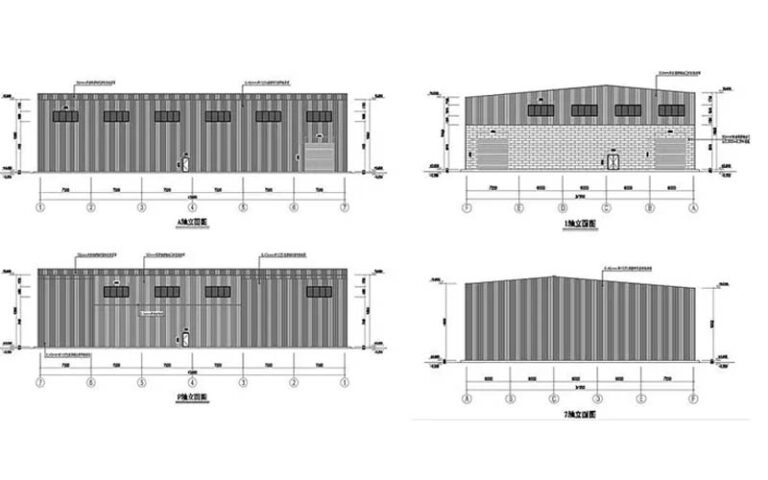

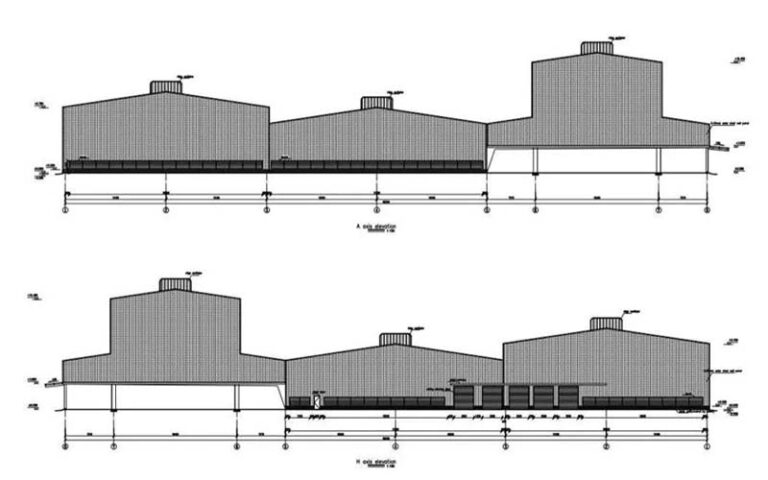

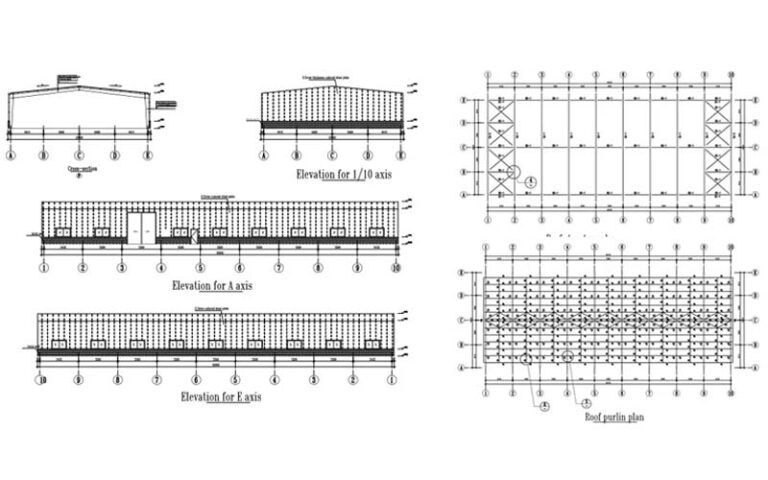

From Drawings to Real Workshop Buildings
See how our shop drawings translate into finished steel workshop buildings—engineered to match your span, eave height, and local wind/snow loads, with layout options for production, maintenance, and storage use.
What You’ll Get When You Request a Steel Workshop Quote
Get a clear scope, recommended workshop layout options, and a fast budget quote based on your crane needs, workflow, and local loads.
Included in Our Reply
- A clear quotation scope (primary frame + cladding + requested accessories)
- A workshop-oriented layout recommendation (door placement, ventilation/daylighting, office/mezzanine options)
- Crane-ready engineering notes (runway beam option, column spacing considerations, lifting height assumptions)
- A quick parameter confirmation checklist (to avoid missing key workshop requirements)
What to Prepare (takes 1 minute)
- Project location (country/city)
- Building size (L × W × eave height)
- Overhead crane requirement (capacity + lifting height + duty class, if any)
- Roof/wall preference (single sheet or sandwich panel)
- Doors & openings (type + quantity + approximate sizes)
- Optional: mezzanine/office need and ventilation requirement
